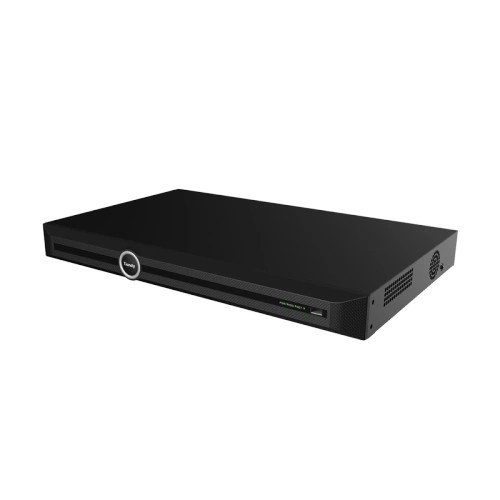

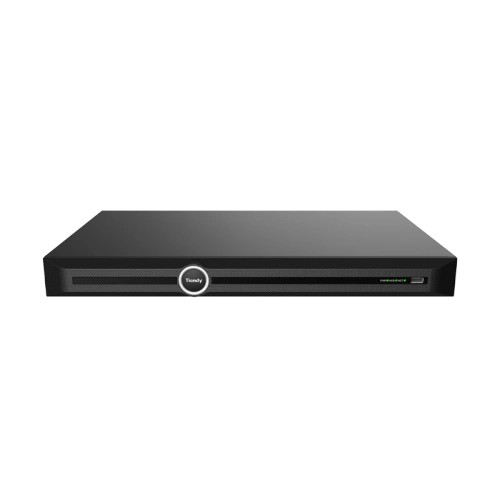

2HDD 10ch PSE AI NVR

Video and Audio

Access Channel

10

Incoming Bandwidth

160Mbps(AI on: 120Mbps)

Outgoing Bandwidth

80Mbps

Resolution

16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Preview Decoding Capability

16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×3, 5MP(30fps)×4, 4MP(30fps)×5, 3MP(30fps)×6, 1080P(30fps)×10, 720P(30fps)×10, 4CIF(30fps)×10 (AI on：16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10, 4CIF(30fps)×10)

Playback Decoding Capability

16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×3, 5MP(30fps)×4, 4MP(30fps)×5, 3MP(30fps)×6, 1080P(30fps)×10, 720P(30fps)×10, 4CIF(30fps)×10 (AI on：16MP(30fps)×1,8MP(30fps)×2, 6MP(30fps)×2, 5MP(30fps)×3, 4MP(30fps)×4, 3MP(30fps)×5, 1080P(30fps)×8, 720P(30fps)×10, 4CIF(30fps)×10)

Third-party Camera Access

ONVIF(Profile S/T); RTSP

HDMI Output

HDMI: 1024×768(60Hz),( 68365752,720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1440×900(60Hz),( 68365753,1080P)1920×1080(50Hz/60Hz),( 68365754,2K)2560×1440(30Hz),( 68365755,4K)3840×2160(30Hz)

VGA Output

VGA: 1024×768(60Hz),( 68365756,720P)1280×720(50Hz/60Hz), 1280×800(60Hz), 1280×1024(60Hz), 1440×900(60Hz),( 68365757,1080P)1920×1080(50Hz/60Hz)

Multi-screen Display

Simultaneous Output: VGA: 1/2A/2B/3/4/5/6/7/8/9/10 HDMI: 1/2A/2B/3/4/5/6/7/8/9/10

Audio Input

1-ch, 3.5mm

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, 3.5mm, using the audio input

Compression Standard

Video Compression

S+265; H.265; S+264; H.264

Audio Compression

G.711A; G.711U; AAC; ADPCM_D

Stream Type

Video; Video & Audio

Network

Network Protocol

802.1X; ARP; DDNS; DHCP; DNS; Easy DDNS; FTP; HTTP; HTTPS; ICMP; IGMP; IPv4; IPv6; Multicast; NFS; NTP; PPPoE; QoS; RTCP; RTP; RTSP; SMB/CIFS; SMTP; SNMP v1/v2/v3; SRTP; SSH; SSL; TLSv1.2; TCP; UDP; Unicast; UPnP

Moblie Client

EasyLive Plus (Android, iOS)

System Compatibility

ONVIF(Profile S/T/G); RTSP; CGI; SDK; Milestone; P2P

Web

IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+

Recording Playback

Multi-channel Playback

10

Record Mode

Manual Recording; Alarm Recording; Schedule Recording

Storage Method

Local HDD

Backup

USB storage device, Network

Playback Function

Play/Pause/Stop/Reverse/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Step/Digital Zoom/Instant Replay

Dual Stream Record

Yes

Alarm

General Alarm

Motion Detection; Mask Alarm; Alarm Input(IPC); Alarm Input(NVR)

Exceptions Alarm

Video Loss; Network Disconnected; No Disk; Illegal Access; Disk group space alert; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure; IP Address Conflict; MAC Address Conflict; Disk Overload

Intelligent Analytics

AI by Camera

Tripwire; Double Tripwire; Perimeter; Object Abandon; Object Missing; Running; Parking; Heatmap; Loitering; Video Abnormal; Audio Abnormal; On Duty Detection; Crowd Detection; Safety Helmet Detection; Electric Bicycle Detection; People Counting; Link to Tracking; Smoke and Fire Detection; Environmental Temperature Measurement; Face Detection; Human Body Temperature Measurement; Smart Alarm; Face Recognition; Human/Vehicle Classification

AI by NVR

Face Detection; Face Recognition; Tripwire; Double Tripwire; Perimeter; Smart Motion Detection

VCA Search

Early-warning Search; Behavior Search; Safety Helmet Search; Thermographic Retrieval; Duty Search; Electric Bicycle Retrieval; Face Search(Search by face attributes); Smart Motion Detection

VCA Report

Heatmap; People Counting; Face Statistics

Face Detection

Face Attributes Detection

Gender; Age; Glasses; Face Mask

Face Attributes Search

Gender; Age; Glasses; Face Mask; Body Temp.

Face Recognition

Face Recognition Performance

1-ch(1080P) video streams or 4-ch image streams

Face Picture Library

Up to 10 face libraries, up to 20000 base images

Face Picture Comparison

Yes

AI Performance(AI by NVR)

Perimeter/Tripwire Performance

4-ch

Smart Motion Dection Performance

4-ch

Storage

HDD Capacity

Up to 10 TB capacity for each HDD

Disk Group

2 Disk Group

External Port

USB

2×USB2.0

HDMI

1×HDMI(supports up to 4K resolution output)

VGA

1×VGA

Network Interface

1×RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port

SATA

2×SATA interface

Alarm I/O

4-ch, TTL inputs, 3mA, 3.3VDC; 1-ch, relay output, 1A, 24VDC

PoE

PoE Interface

8×RJ45, 10/100 Mbps self-adaptive Ethernet port

PoE Budget

120W

Power per PoE Port

30W

Standard

IEEE 802.3 af/at

General

UI Language

Simple Chinese; Traditional Chinese; English; Spanish; Korean; Italian; Turkish; Russian; Thai; French; Polish; Dutch; Hebrew; Arabic; Vietnamese; German; Ukrainian; Portuguese; Albanian; Indonesian; Greek

Power Supply

100~240V AC

Power Consumption

<10W(without HDD&without PoE)

NetWeight

3kg

GrossWeight

4.3kg

Boundary Dimensions

440(L)284(W)48(H)mm

Package Dimensions

510(L)150(W)385(H)mm

Operating Temperature

-10℃~+55℃ (+14℉~+131℉)

Operating Humidity

10%~90%RH (non-condensing)

Storage Temperature

-20℃~+60℃ (-4℉~+140℉)

Package Kit

Network Video Recorder*1; Screw Pack*2; Mouse*1; European Standard Power Cord*1; Ear Plate*2; Instructions*1; Parts List*1
