S5120V3-LI Layer 3 Series
H3C S5120V3-LI Layer 3 Gigabit Access Switch Series
H3C S5120V3-LI Ethernet switch product is independently developed by New H3C Technologies Co., Ltd. (H3C). It is a second-generation smart managed switch designed for network environments that require high performance, high port density, and easy installation.
H3C S5120V3-LI Ethernet switch provides 10/100/1000Base-T adaptive Ethernet ports or SFP/SFP+ optical ports. In enterprise networks, it can be used as an access device to provide Gigabit to desktops; in metropolitan area networks or networks of industrial users, it can provide Gigabit access to end users or tandem low-end switches downwards, and connect to high-capacity L3 switches through Gigabit fiber or link aggregation upwards.
H3C S5120V3-LI Ethernet switch series supports the innovative Intelligent Resilient Framework (IRF) technology, which allows users to connect up to nine S5120V3-LI switches to form a logically independent entity to build a highly reliable, easily scalable, and manageable new intelligent network.
H3C S5120V3-LI Ethernet switch series includes the following models:
H3C S5120V3-LI Ethernet switch provides 10/100/1000Base-T adaptive Ethernet ports or SFP/SFP+ optical ports. In enterprise networks, it can be used as an access device to provide Gigabit to desktops; in metropolitan area networks or networks of industrial users, it can provide Gigabit access to end users or tandem low-end switches downwards, and connect to high-capacity L3 switches through Gigabit fiber or link aggregation upwards.
H3C S5120V3-LI Ethernet switch series supports the innovative Intelligent Resilient Framework (IRF) technology, which allows users to connect up to nine S5120V3-LI switches to form a logically independent entity to build a highly reliable, easily scalable, and manageable new intelligent network.
H3C S5120V3-LI Ethernet switch series includes the following models:

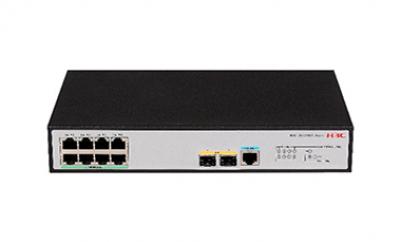

- S5120V3-10P-LI: 8*10/100/1000TX+ 2*SFP
- S5120V3-10P-PWR-LI: 8*10/100/1000TX + 2*SFP

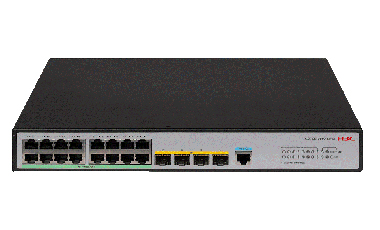

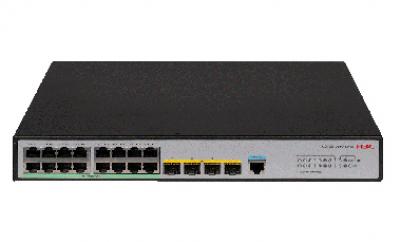

- S5120V3-20P-LI: 16*10/100/1000TX+ 4*SFP
- S5120V3-28P-LI: 24 *10/100/1000TX+ 4*SFP
- S5120V3-52P-LI: 48*10/100/1000TX+ 4*SFP
- S5120V3-28P-PWR-LI: 24 *10/100/1000TX+ 4*SFP
- S5120V3-28P-HPWR-LI: 24 *10/100/1000TX+ 4*SFP(4*GE Combo Ports)
- S5120V3-52P-PWR-LI: 48*10/100/1000TX+ 4*SFP
- S5120V3-28S-LI: 24*10/100/1000TX+ 4*SFP Plus
- S5120V3-52S-LI: 48*10/100/1000TX+ 4*SFP Plus
- S5120V3-28S-PWR-LI: 24*10/100/1000TX + 4*SFP Plus
- S5120V3-52S-PWR-LI: 48*10/100/1000TX + 4*SFP Plus
- S5120V3-28S-HPWR-LI: 24*10/100/1000TX + 4*SFP combo+ 4*SFP Plus

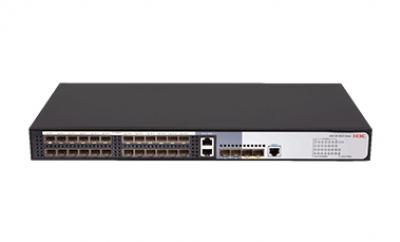

- S5120V3-28F-LI: 24*100/1000Base-X Ports + 2*10/100/1000Base-T Combo Ports + 2*1000Base-X SFP Ports + 2*1G/10G Base-X SFP Plus
Hardware Specifications
| Feature | S5120V3-10P-LI | S5120V3-10P-PWR-LI | S5120V3-20P-LI | S5120V3-28P-LI |
|---|---|---|---|---|
| Switching capacity | 20Gbps | 20Gbps | 40Gbps | 56Gbps |
| Forwarding capacity | 15Mpps | 15Mpps | 30Mpps | 41.7Mpps |
| CPU | 1 Core, 800MHz | |||
| Flash/SDRAM | 256MB/512MB | |||
| Dimensions (W × D × H) | 266×161×43.6 mm | 330×230×43.6 mm | 330×230×43.6 mm | 440×160×43.6 mm |
| Weight | ≤ 1.5 kg | ≤ 3 kg | ≤ 2 kg | ≤ 2.5 kg |
| Management port | 1 console port | |||
| Networking interface | 8*10/100/1000TX+ 2*SFP | 8*10/100/1000TX+ 2*SFP | 16×10/100/1000TX+4×SFP | 24×10/100/1000TX+4×SFP |
| Maximum Stacking bandwidth | 16Gbps | 16Gbps | 16Gbps | 16Gbps |
| Maximum stacking num | 9 | 9 | 9 | 9 |
| Port Surge | 6KV | 6KV | 6KV | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. | |||
| Total power consumption | MIN: AC: 8W MAX: AC: 15W |
MIN: AC: 14W MAX: AC: 156W (PoE 125W) |
MIN: AC: 9W MAX: AC: 19W |
MIN: AC: 9W MAX: AC: 23W |
| Fan number | Fan-less | Fan-less | Fan-less | Fan-less |
| MTBF(Year) | 140.82 | 117.08 | 136.24 | 150.86 |
| MTTR(Hour) | 1 | 1 | 1 | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
|||
| Storage temperature | -40℃ ~ 70℃ | |||
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing | |||
Hardware Specifications (continued)
| Feature | S5120V3-52P-LI | S5120V3-28P-PWR-LI | S5120V3-28P-HPWR-LI | S5120V3-52P-PWR-LI | S5120V3-28F-LI |
|---|---|---|---|---|---|
| Switching capacity | 104Gbps | 56Gbps | 56Gbps | 104Gbps | 92Gbps |
| Forwarding capacity | 77.4Mpps | 41.7Mpps | 41.7Mpps | 77.4Mpps | 136.9Mpps |
| CPU | 1 Core, 800MHz | ||||
| Flash/SDRAM | 256MB/512MB | ||||
| Dimensions (W × D × H) | 440×230×43.6 mm | 440×260×43.6 mm | 440×260×43.6 mm | 440×400×43.6 mm | 440×230×43.6 mm |
| Weight | ≤ 3.5 kg | ≤ 4 kg | ≤4 kg | ≤ 6 kg | ≤ 3 kg |
| Management port | 1 console port | ||||
| Networking interface | 48×10/100/1000TX+4×SFP | 24×10/100/1000TX+4×SFP | 24×10/100/1000TX+4×SFP(4Combo) | 48×10/100/ 1000TX+4×SFP |
24×SFP+2×10/100/1000Base-T (2Combo) +2×1000Base-X SFP Ports+2×SFP Plus |
| Maximum Stacking bandwidth | 16Gbps | 16Gbps | 16Gbps | 16Gbps | 40Gbps |
| Maximum stacking num | 9 | 9 | 9 | 9 | 9 |
| Port Surge | 6KV | 6KV | 6KV | 6KV | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. | ||||
| Total power consumption | MIN: AC: 18W MAX: AC: 41W |
MIN: AC: 15W MAX: AC: 294W (PoE 240W) |
MIN: AC: 12W MAX: AC single 400W (PoE 370W) |
MIN: AC: 36W MAX: AC: 467W (PoE 370W) |
MIN: AC: 15W MAX: AC: 45W |
| Fan number | 1 | 1 | 3 | 1 | 2 |
| MTBF(Year) | 115.68 | 87.06 | 52.81 | 50.19 | 150.86 |
| MTTR(Hour) | 1 | 1 | 1 | 1 | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
||||
| Storage temperature | -40℃ ~ 70℃ | ||||
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing | ||||
Hardware Specifications (continued)
| Feature | S5120V3-28S-LI | S5120V3-52S-LI | S5120V3-28S-HPWR-LI | S5120V3-28S-PWR-LI | S5120V3-52S-PWR-LI |
|---|---|---|---|---|---|
| Switching capacity | 128Gbps | 176Gbps | 128Gbps | 128Gbps | 176Gbps |
| Forwarding capacity | 95.232Mpps | 130.952Mpps | 95.232Mpps | 95.232Mpps | 130.952Mpps |
| CPU | 1 Core, 800MHz | ||||
| Flash/SDRAM | 256MB/512MB | ||||
| Dimensions (W × D × H) | 440×160×43.6 mm | 440×230×43.6 mm | 440×260×43.6 mm | 440×260×43.6 mm | 440×400×43.6 mm |
| Weight | ≤ 2.5 kg | ≤ 3.5 kg | ≤ 4.5 kg | ≤ 4.5 kg | ≤ 6 kg |
| Management port | 1 console port | ||||
| Networking interface | 24×10/100/1000TX+4×SFP Plus | 48×10/100/1000TX+4×SFP Plus | 24×10/100/1000TX+ 4×SFP combo + 4×SFP Plus | 24×10/100/1000TX+ 4×SFP Plus | 48×10/100/1000TX+ 4×SFP Plus |
| Maximum Stacking bandwidth | 80Gbps | 80Gbps | 80Gbps | 80Gbps | 80Gbps |
| Maximum stacking num | 9 | 9 | 9 | 9 | 9 |
| Port Surge | 6KV | 6KV | 6KV | 6KV | 6KV |
| Input voltage | AC: The rated voltage range is 100V to 240V, 50/60Hz. | ||||
| Total power consumption | MIN: AC: 10W MAX: AC: 24W |
MIN: AC: 19W MAX: AC: 44W |
MIN: AC: 16W MAX: AC: 445W (PoE 370W) |
MIN: AC: 15W MAX: AC: 294W (PoE 240W) |
MIN: AC: 36W MAX: AC: 467W (PoE 370W) |
| Fan number | Fan-less | 1 | 3 | 1 | 1 |
| MTBF(Year) | 150.86 | 115.68 | 52.81 | 87.06 | 50.19 |
| MTTR(Hour) | 1 | 1 | 1 | 1 | 1 |
| Operating temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
||||
| Storage temperature | -40℃ ~ 70℃ | ||||
| Relative humidity (non-condensing) | 5% RH to 95% RH, non-condensing | ||||
H3C S5120V3-LI Series Network Access Switch Datasheet.pdf
